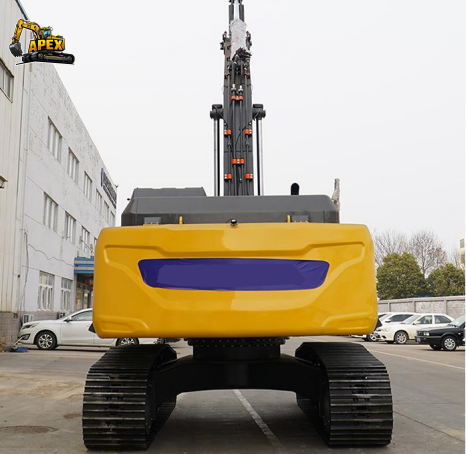

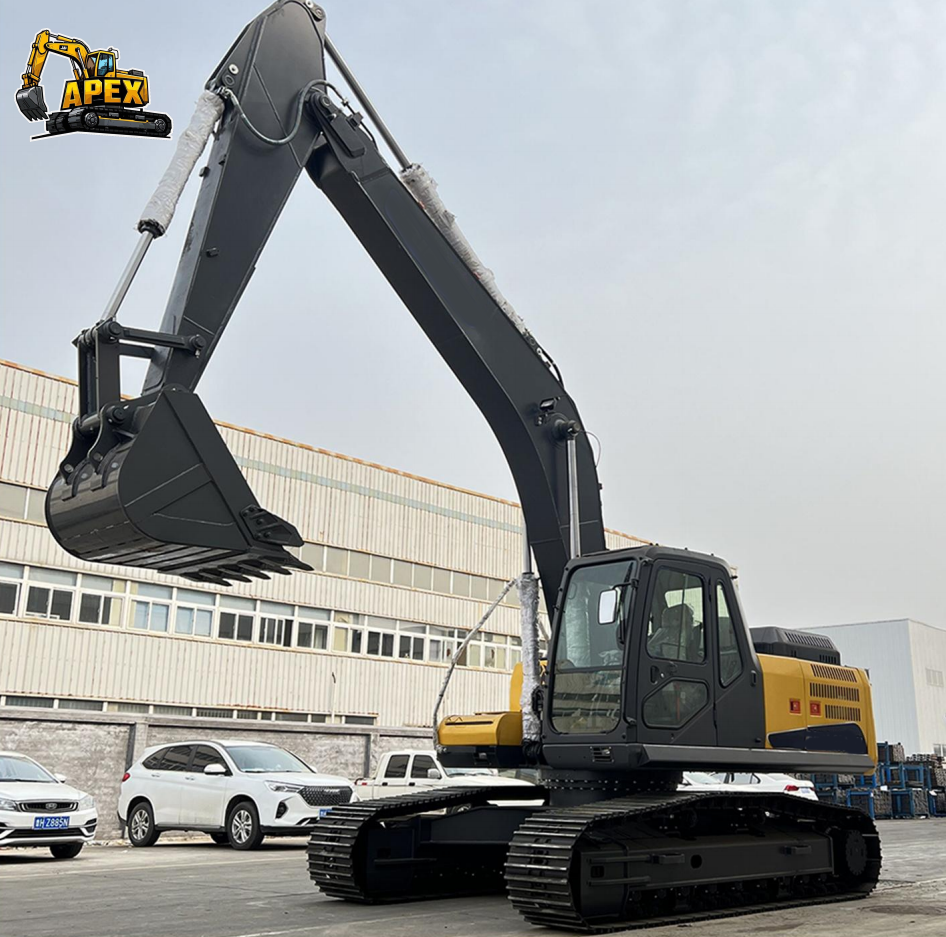

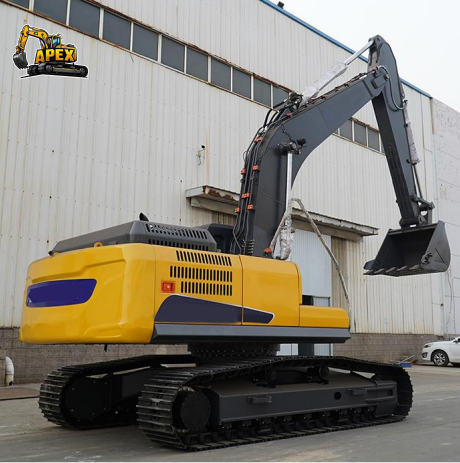

APEX 4230E
The APEX 4230E excavator features an operating weight of 21500kg, a bucket capacity of 1.28m³, and is powered by a CUMMINS engine delivering 110KW at 1950 rmp. It offers a digging depth of 6630mm and a digging height of 9660mm.
+86 537 2288218
+86 15562359517
Dmachinerygroup@gmail.com

→ Product Description

Large excavator APEX 4230E
SpecificationOverall height of cab (mm)3000
Machine working weight (kg)21500Tail turning radius (mm)2750
Bucket capacity (m³)0.5-1.28Counterweight ground clearance (mm)1105
Boom length (mm)5700Track length (mm)4440
Dipper length (mm)2900Full width of crawler track (mm)2990
PerformanceTrack shoe width (mm)600
Rotation speed (rpm)12.4Total length for transport (mm)9510
Walking speed (km/h)3.1-4.5Minimum ground clearance (mm)480
Bucket digging force (KN)136.2Scope of work
Digging force of stick (KN)97Maximum digging range (mm)6445
EngineMaximum digging range on the ground (mm)9735
Engine model CumminsMaximum digging depth (mm)6630
Rated power(kw/rpm)110/1950Maximum excavator height (mm)9660
Cooling methodWater coolingMaximum discharge height (mm)6810
Body sizeMaximum vertical depth that can be excavated (mm)6045
Total transport width (mm)2990
