    Where Precision Meets Purpose: EVERMORE Skid Steer Loaders Deliver Innovation and Strength to Every Job.

EVERMORE 5120ZT
This EVERMORE 5120ZT crawler skid steer loader is equipped with a 90Kw engine, with a maximum of 1500 kg and a bucket capacity of 0.6 cubic meters.

→ Product Description

ModelEVERMORE 5120ZTModelEVERMORE 5120ZTModelEVERMORE 5120ZT
Performance parameterDimension ParameterBucket tipping angle at maximum104mm
Rated load1500kgMaximum operating height4070mmWheelbase1500mm
Maximum speed12km/hBucket pin height3280mmGround Clearance200mm
Hydraulic flow88L/minCab Ceiling Height2160mmAngle of departure20°
High flow system flow140Bucket to its bottom maximum height3140mmTurning radius without bucket1365mm
Tire type450*86No bucket total length3000mmForward turning radius2200mm
Rated Power103kwTotal length with bucket3700mmRear turning radius1742mm
Fuel tank capacity90LMaximum height unloading angle40mmTail length938mm
Operating Weight4800kgDischarge Height2500mmWheelbase (standard tire)1654mm
Bucket Volume0.6mUnloading Distance700mmVehicle Width (standard tire)2124mm


Bucket reversalangle at ground level40mmStandard bucket width2160mm


Product advantage

Wide field of vision, you can observe the working device and surrounding environment well while working.

The cab, seat belt, and safety armrest will automatically lock the walking system and operating handle after being lifted, and realize the parking brake.

Heating and cooling air-conditioning, operating rods and dashboards arranged according to ergonomic principles, servo control system, hand and foot linkage-type throttle enable the machine to start and brake smoothly, keeping the operator in working condition all the time.

The left and right handles control walking and working device movements, which is more in line with operating habits and facilitates satisfactory operation.

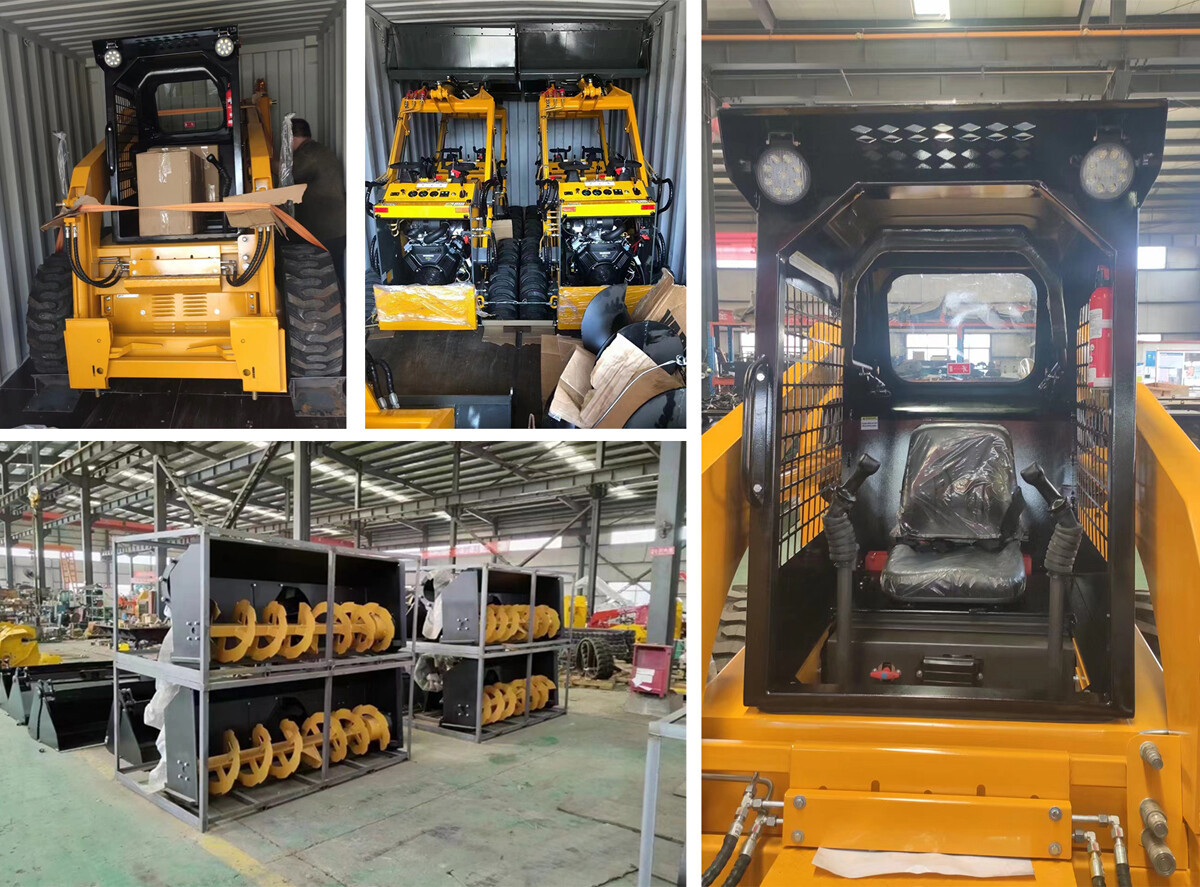

skid steer loader (1).jpg
