APEX 418EV
The APEX 418EV compact electric excavator features an operating weight of 1500kg, a bucket capacity of 0.03m³, and is powered by a 72V Lithium battery delivering 6kW at 200Ah battery capacity. It offers a digging depth of 1910mm and a digging height of 2700mm
+86 537 2288218
+86 15562359517
Dmachinerygroup@gmail.com

→ Product Description


Bucket Capacity

0.03m³

Chassis Width

1100mm

Track Length

1300mm

Gradeability

  40°

Chassis Ground Clearance

385mm

Track Width

180mm

Overall Dimension

 2200*1100*2200mm

Transport Length

2200mm

Excavator Height

2200mm

Battery Capacity Battery Voltage

200Ah 72V

Charging Time

6H-8H

Decibels within 1 meter

<55

Engine

Lithium Battery

Motor   Power

6KW

Power   consumption per hour

1KW/h

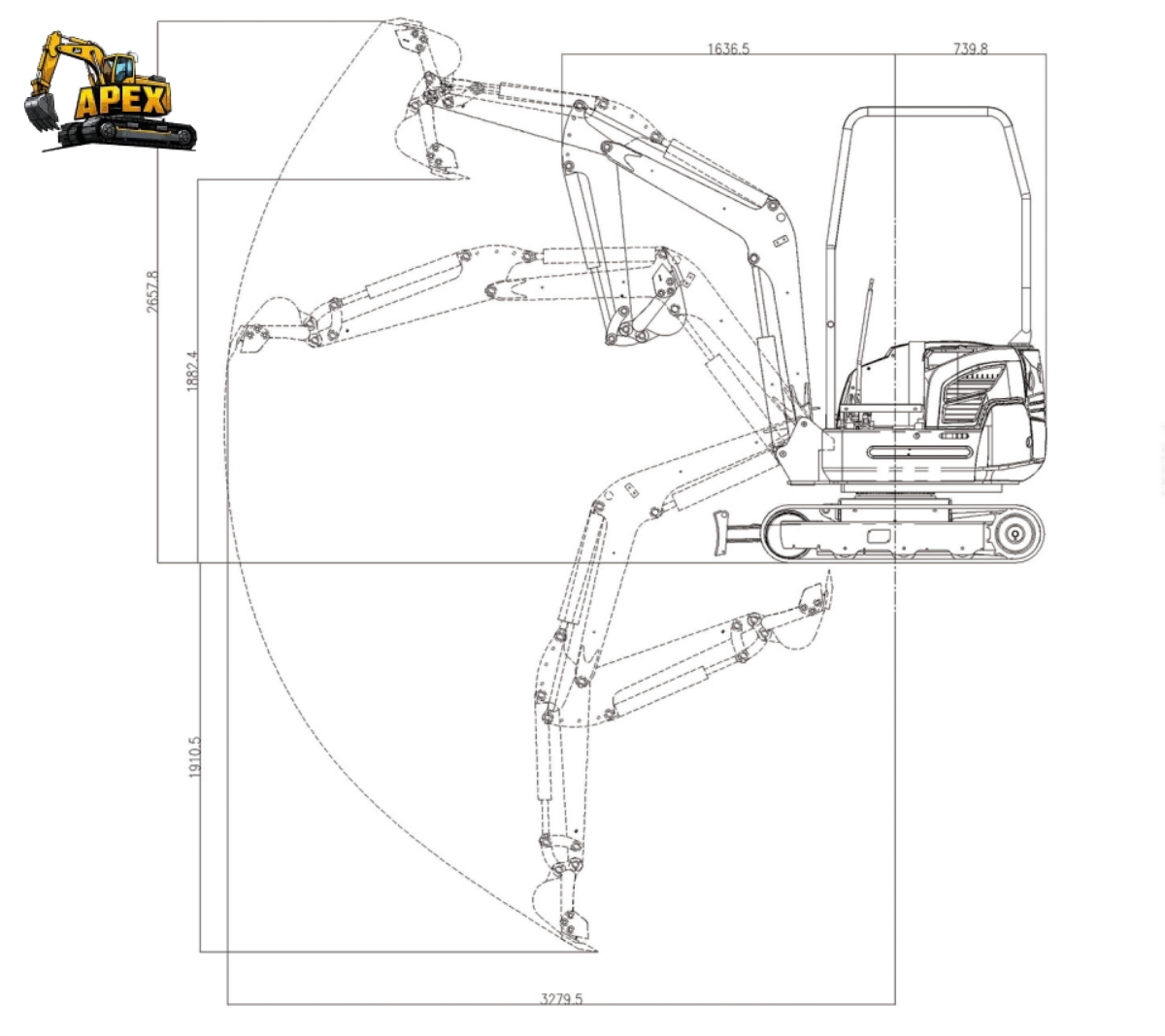

Max.Digging Height

2700mm

Max.Dumping Height

1900mm

Max.Digging Depth

1910mm

Max.Digging Radius

3280mm

Turning Radius

1636mm

Bucket excavating force

15KN

Operating Weight

1500kg
