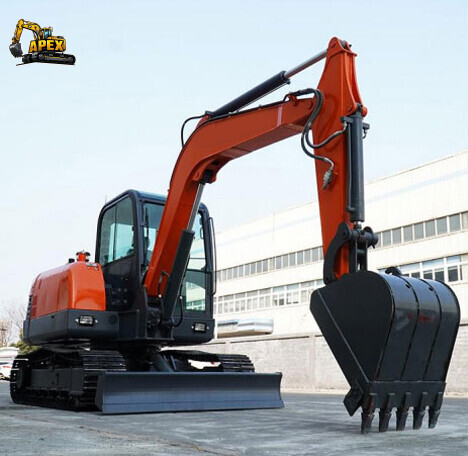

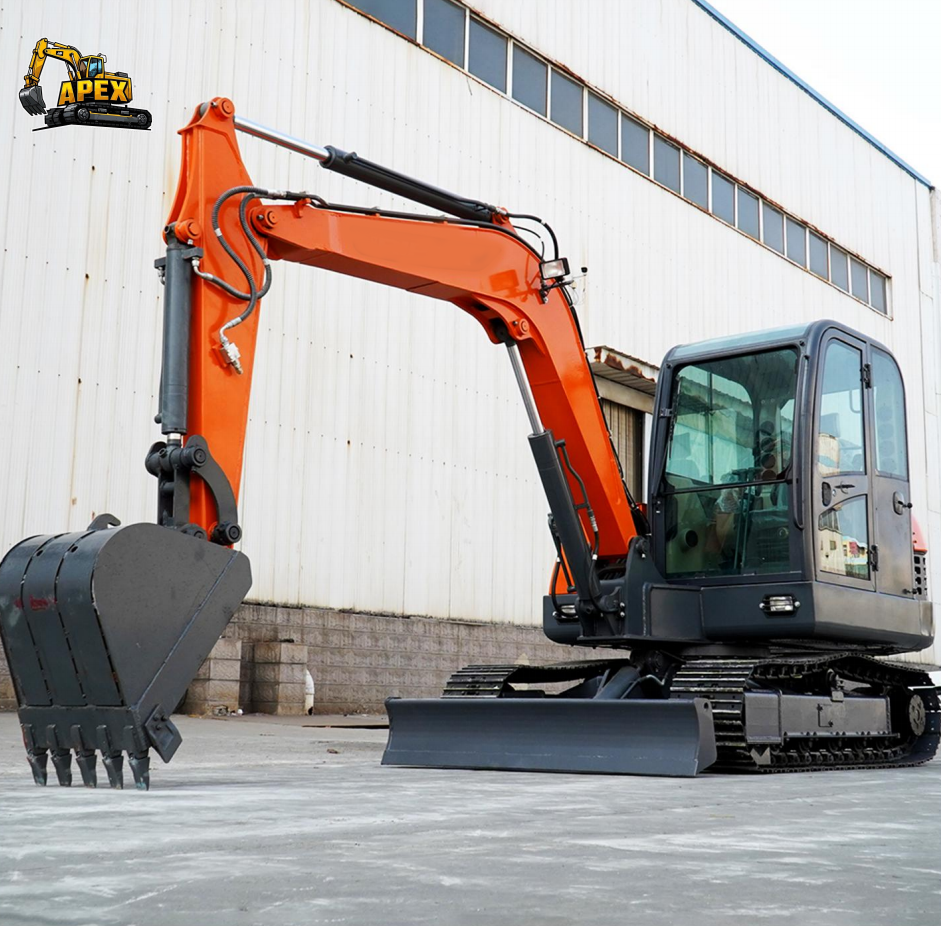

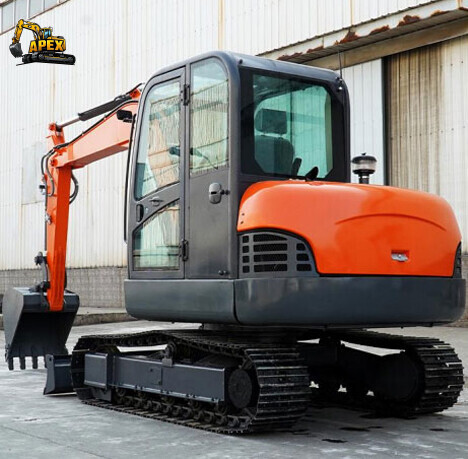

APEX 460E
The APEX 460E excavator features an operating weight of 6000kg, a bucket capacity of 0.175m³, and is powered by a Yanmar4TNV94L engine delivering 38.1kW at 2200 rmp. It offers a digging depth of 3890mm and a digging height of 5780mm.
+86 537 2288218
+86 15562359517
Dmachinerygroup@gmail.com

→ Product Description

Mini excavator APEX 460E
SpecificationOverall height of cab (mm)2580
Machine working weight (kg)6000Tail turning radius (mm)1650
Bucket capacity (m³)0.09-0.175Counterweight horizontal height (mm)700
Boom length (mm)3000Track length (mm)2540
Dipper length (mm)1600Full width of crawler track (mm)1880
PerformanceTrack shoe width (mm)400
Rotation speed (rpm)9Overall length(mm)5850
Walking speed (km/h)4.16/2.3Minimum ground clearance (mm)400
Bucket digging force (KN)44Scope of work
Digging force of stick (KN)29Maximum digging range (mm)6150
EngineMaximum digging range on the ground (mm)6150

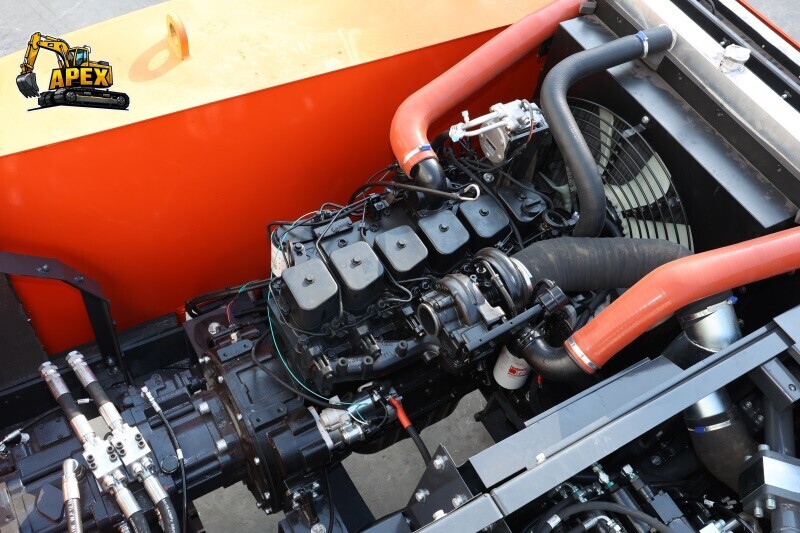

Engine modelYanmar4TNV94LMaximum digging depth (mm)3890
Rated power(kw/rpm)38.1/2200Maximum excavator height (mm)5780
Cooling methodWater coolingMaximum discharge height (mm)4060
Body sizeMaximum vertical depth that can be excavated (mm)3025
Full width of upper part (mm)2000
