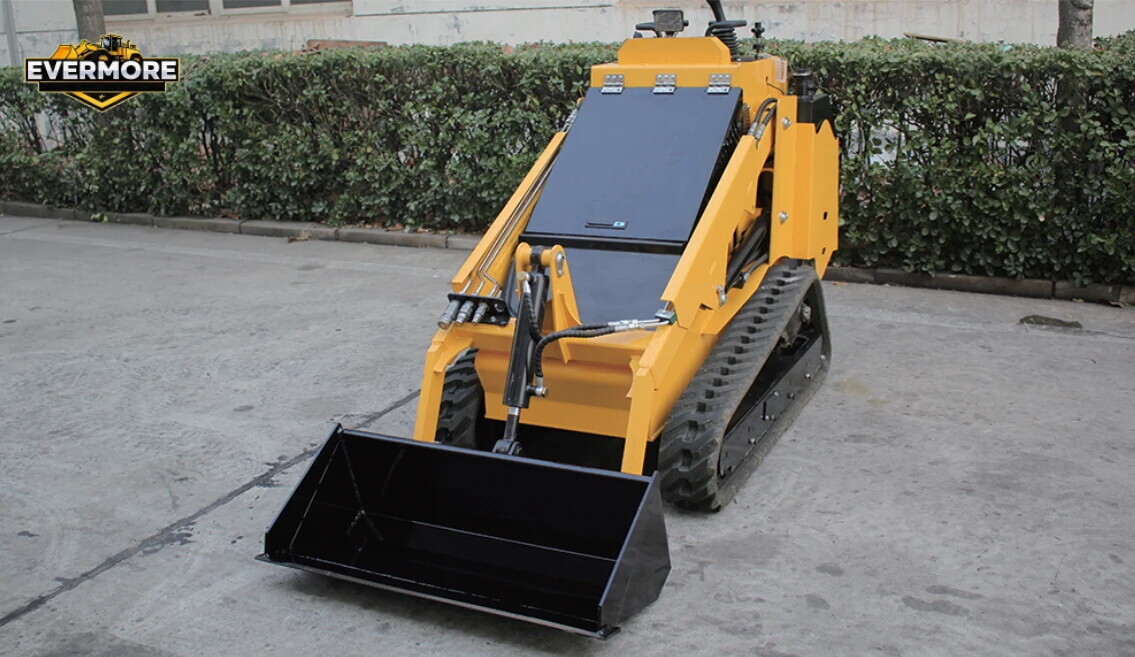

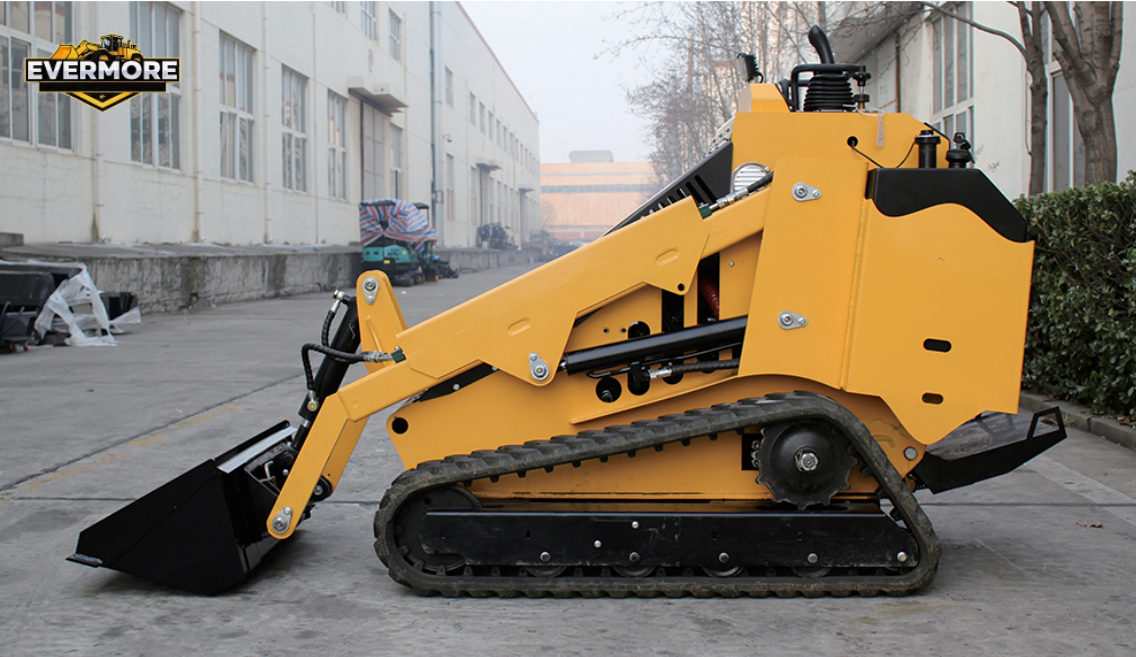

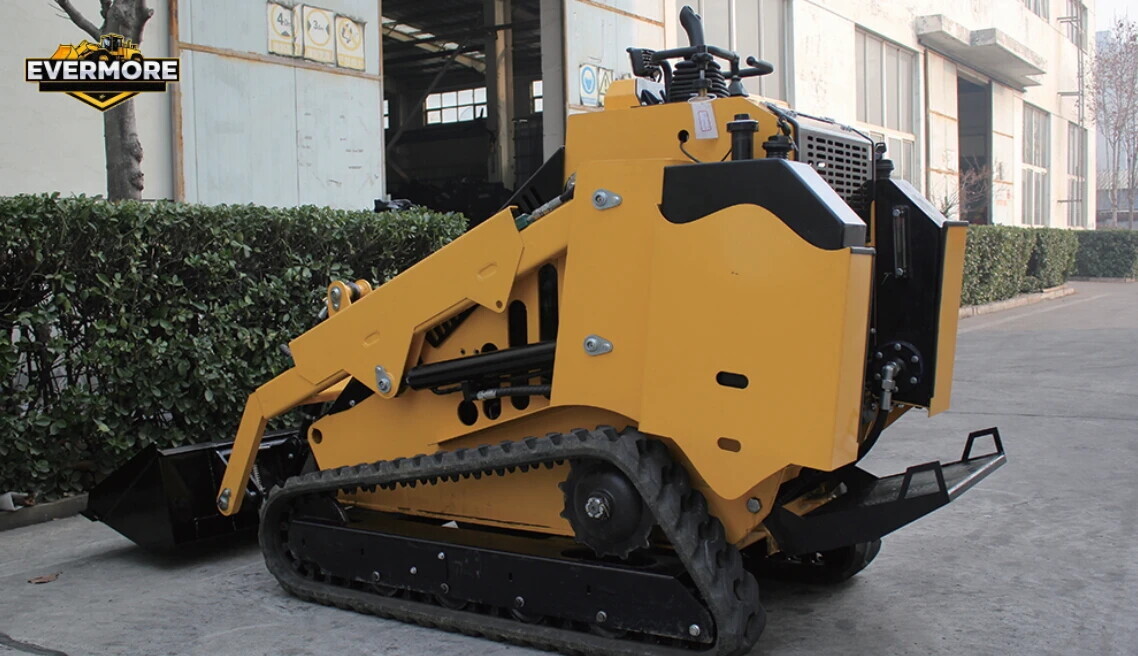

EVERMORE 520ZT
The compact EVERMORE 520ZT skid steer loader is powered by Yanmar 3TNV80 engine with 18.64KW power. It has a rated operating capacity of 400kg, a maximum capacity of 450kg, and a breakout force of 4.5kN. The loader features a 0.15m³ bucket, a maximum speed of 6km/h, With a 30L fuel tank and an operating weight of 1200kg, it complies with Euro 5/EPA emissions standards.
+86 537 2288218
+86 15562359517
Dmachinerygroup@gmail.com

→ Product Description

Engine brand

Electric/Laidong 385/Yanmar 380

Rated power

8kw、72v、20ah/18.6/18.4kw

Number of cylinders

3

Air intake way

Naturally Aspirated

Emissions standards

EURO5/EPA

Rated operating capacity

400Kg

Maximum operating capacity

450Kg

Maximum breakout force

4.5KN

Bucket capacity

0.15m³

Driving speed

0-6km/h

Total cycling time

9s

System operating pressure

25bar

Fuel tank capcity

30L

Operating weight

1200KG

Track model

180*72*45


Vehicle height

1550mm

Length with standard bucket

2700mm

Vehicle width (standard tire)

970mm

Length without standard bucket

2070mm

Bucket width

1270mm

Tail length

500mm

Height at maximum extension

2920mm

Height to the the bucket pin

2300mm

Maximum height as lay the bucket flat

2140mm

Dumping height

1700mm

Discharge distance

150mm

Track contact with ground length

1300mm

Ground clearance

240mm

The flip angle of the bucket on the ground

27°

Bucket flip angle at highest position

114°
