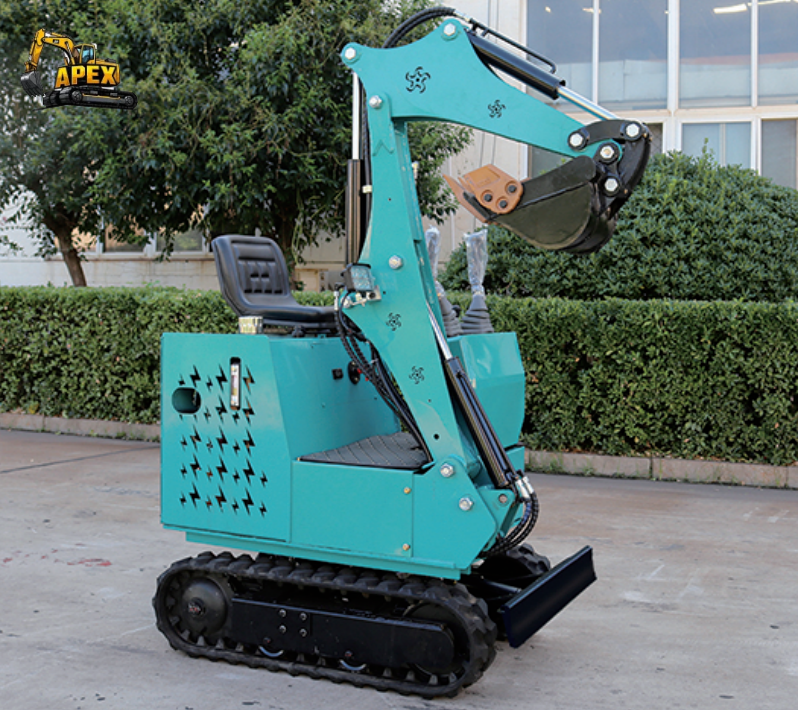

APEX 409EV
The APEX 409EV compact electric excavator features an operating weight of 800kg, a bucket capacity of 0.02m³, and is powered by a 72V Lithium battery delivering 4kW at 126Ah battery capacity. It offers a digging depth of 840mm and a digging height of 2500mm
+86 537 2288218
+86 15562359517
Dmachinerygroup@gmail.com

→ Product Description



Bucket Capacity0.02m³
Chassis Width730mm
Track Length1100mm
Gradeability40°
Chassis Ground Clearance380mm
Track Width150mm
Overall Dimension2000*730*1880mm
Transport Length2200mm
Excavator Height1880mm
Battery Capacity126Ah
Battery Voltage72V
Charging Time6H-8H
Decibels within 1 meter<55


EngineLithium Battery
Motor  Power4KW
Power consumption per hour1KW/h

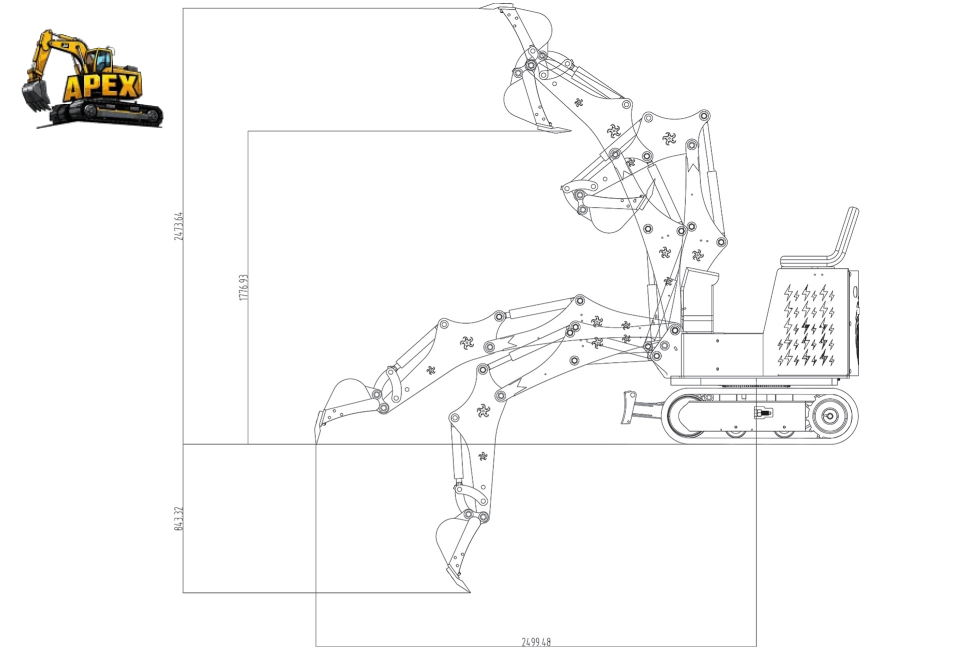

Max.Digging  Height2500mm
Max.Dumping Height1780mm
Max.Digging  Depth840mm
Max.Digging  Radius2500mm
Turning Radius1100mm
Bucket  excavating  force
11.5KN
Operating  Weight800kg
ConfigurationValve:Beifang Brand
   Pump:Xingzou Brand
Load  sensitive  system
