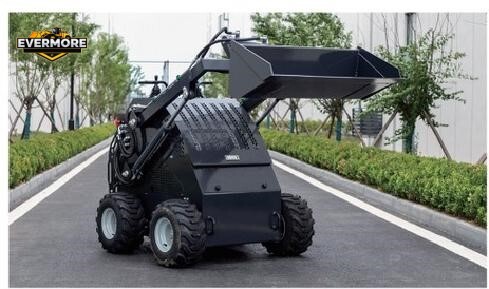

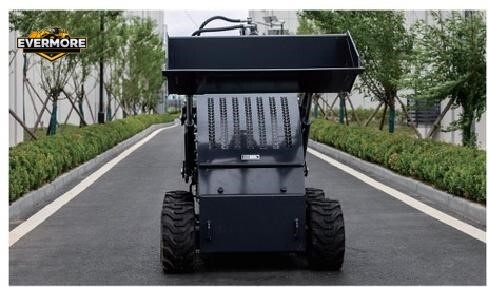

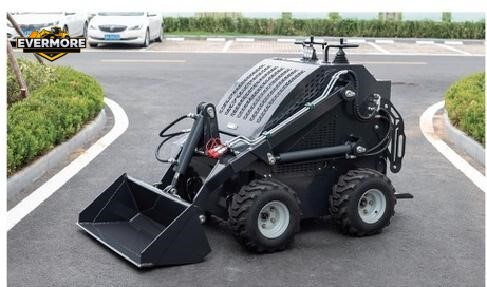

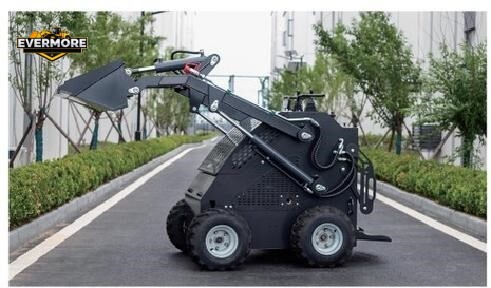

EVERMORE 510Z
The compact EVERMORE 510Z skid steer loader is powered by (Electric/Koop/Runtong/B&S) engine with (72V, 200Ah battery/15KW/19.2KW/17KW) power. It has a rated operating capacity of 300kg, a maximum capacity of 400kg, and a breakout force of 4.5kN. The loader features a 0.12m³ bucket, a maximum speed of 6km/h, With a 10L fuel tank and an operating weight of 1200kg, it complies with Euro 5/EPA emissions standards.
+86 537 2288218
+86 15562359517
Dmachinerygroup@gmail.com

→ Product Description


Engine brand

Electric/koop/Runtong/B&S

Rated power    8kw、

72v、200ah/15/19.2/17kw

Number of cylinders

2

Air intake way

Natural aspiration

Emissions standards

Euro 5/EPA

Rated operating capacity

300Kg

Maximum operating capacity

400Kg

Maximum breakout force

4.5KN

Bucket capacity

0.12m³

Driving speed

0-6km/h

Total cycling time

9s

System operating pressure

17-21bar

Fuel tank capcity

10L

Operating weight

1200KG

Wheel size

18*8.5-8

Vehicle height

1300mm

Length with standard bucket

2140mm

Vehicle width (standard tire)

1050mm

Length without standard bucket

1850mm

Bucket width

1050mm

Tail length

500mm

Height at maximum extension

2400mm

Height to the the bucket pin

1870mm

Maximum height as lay the bucket flat

1720mm

Dumping height

1510mm

Discharge distance

250mm

Wheelbase

800mm

Ground clearance

110mm

The flip angle of the bucket on the ground

27°

Bucket flip angle at highest position

114°
