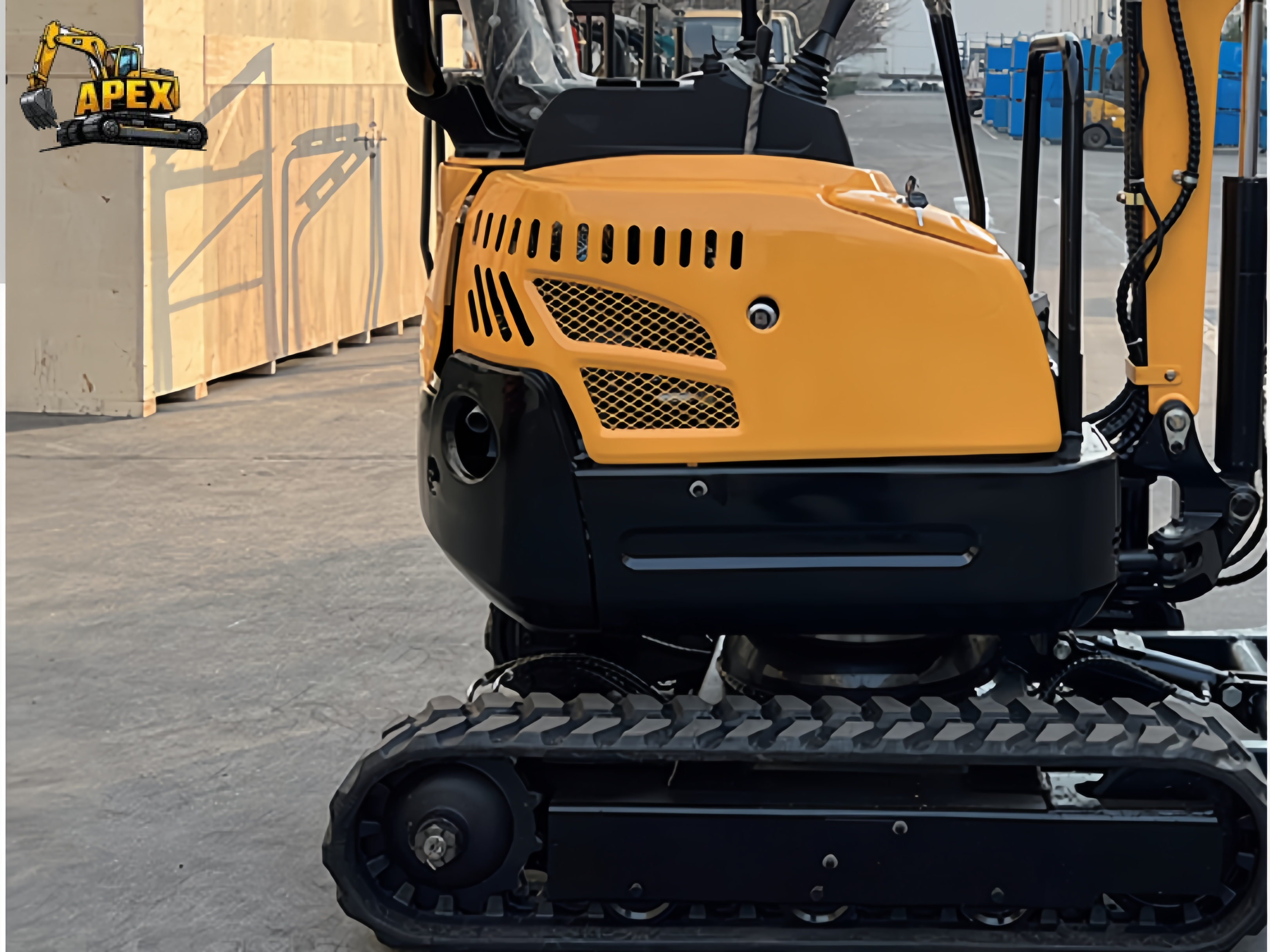

APEX 413EV
The APEX 413EV compact electric excavator features an operating weight of 1100kg, a bucket capacity of 0.025m³, and is powered by a 72V Lithium battery delivering 6kW at 126Ah battery capacity. It offers a digging depth of 1740mm and a digging height of 2550mm
+86 537 2288218
+86 15562359517
Dmachinerygroup@gmail.com

→ Product Description


Bucket Capacity

0.025m³

Chassis Width

1100mm

Track Length

1300mm

Gradeability

40°

Chassis Ground Clearance

385mm

Track Width

180mm

Overall Dimension Transport Length

2200*1100*2200mm

2400mm

Excavator Height

2200mm

Battery Capacity Battery Voltage

126Ah 72V

Charging Time

6H-8H

Decibels within 1 meter

<55



Engine

Lithium   Battery

Motor Power

6KW

Power consumption per hour

1KW/h

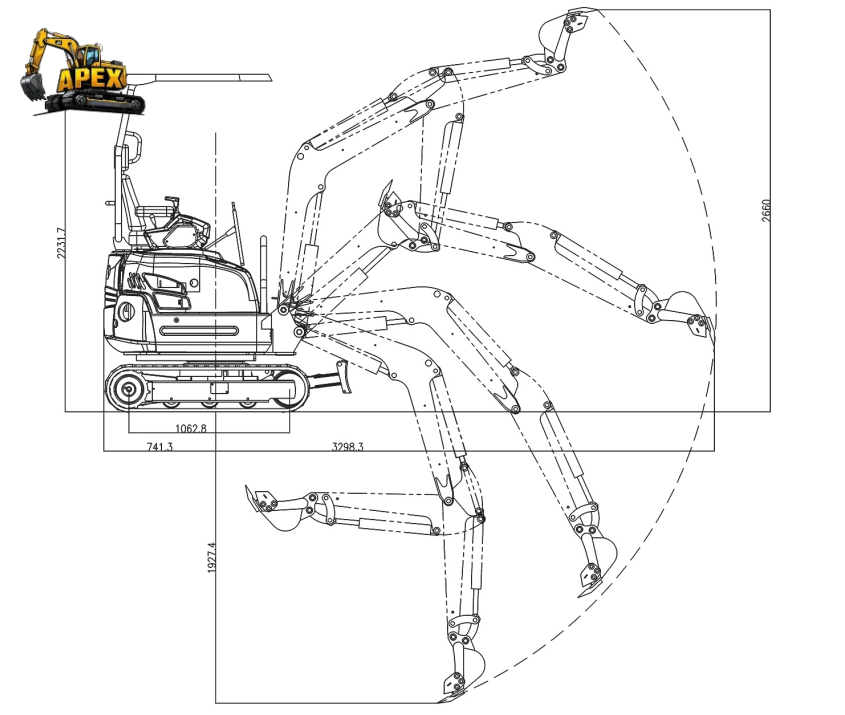

Max.Digging Height

2550mm

Max.Dumping Height

1710mm

Max.Digging Depth

1740mm

Max.Digging Radius

3100mm

Turning Radius

1635mm

Bucket excavating force

11KN

Operating Weight

1100kg


Pump:  KJun Brand

Piston pump

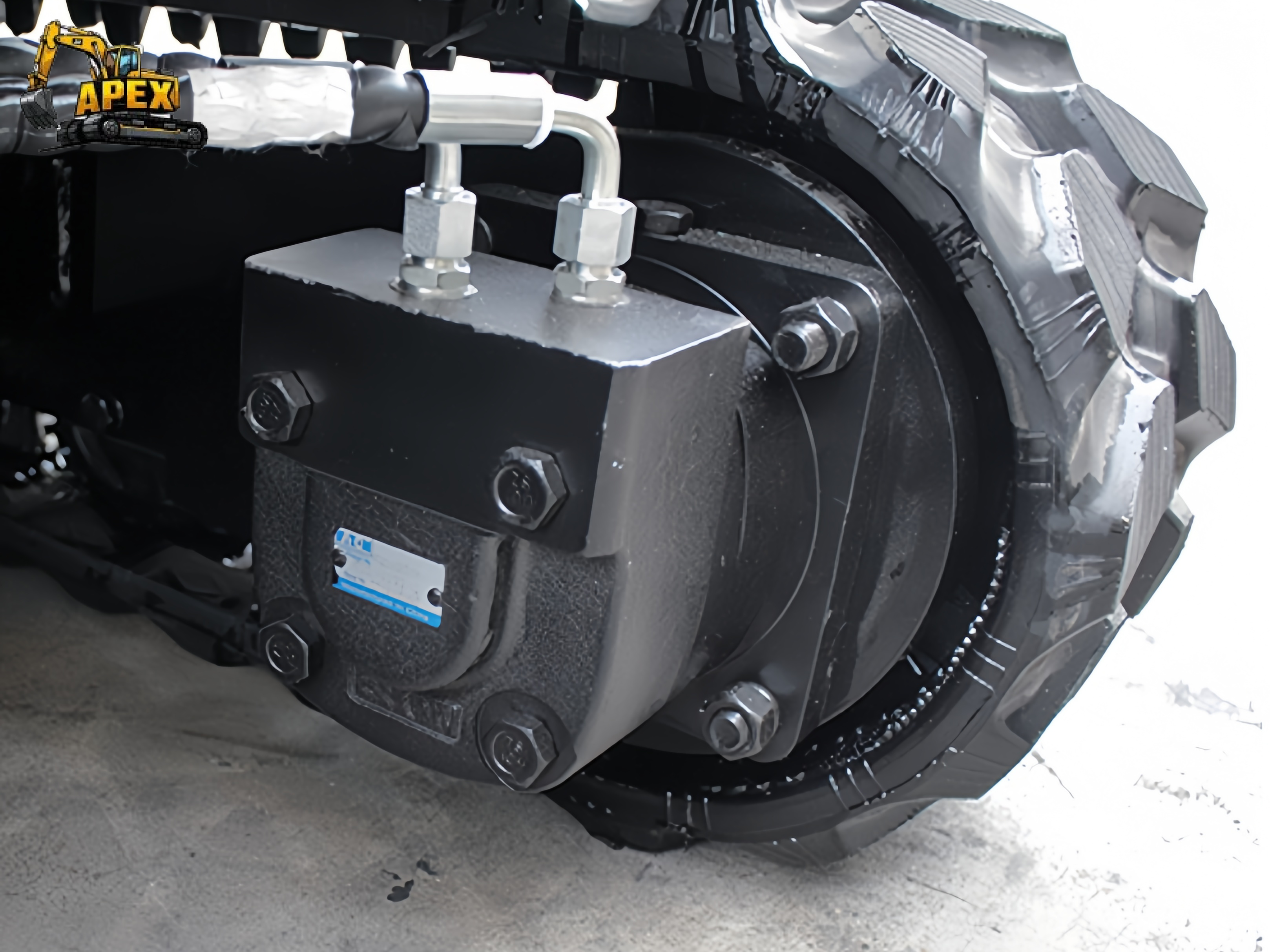

Eaton Walking Motor
