→ Product Description

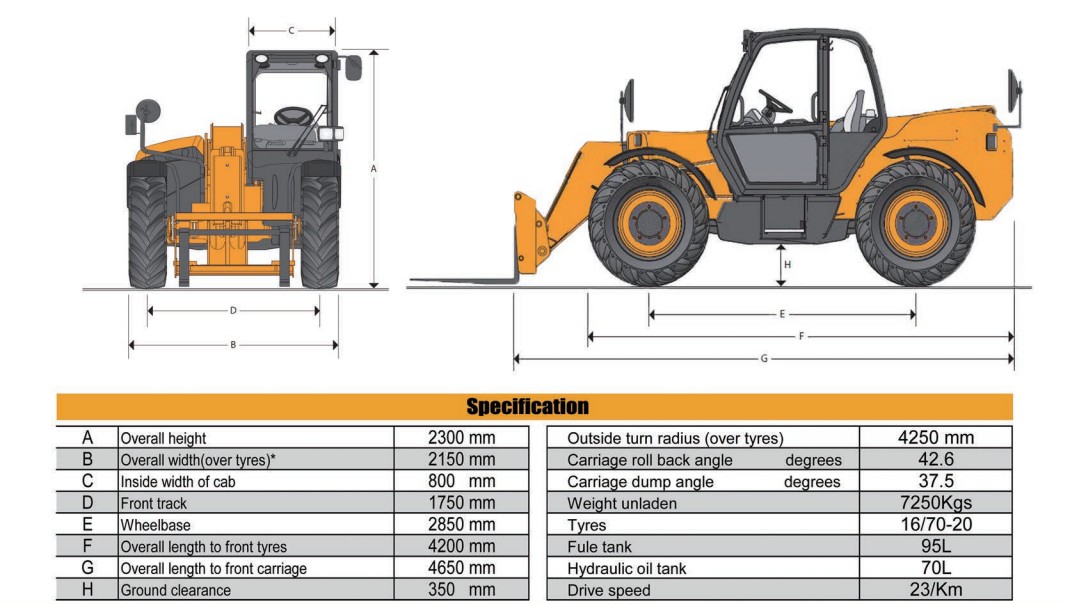

ELITE 730S Telehandler Specification


Maximum lift capacity3000kg
Lift capacity to full height2300kg
Lift capacity at full reach1100kg
Lift height6800mm
Reach at maximum lift height450mm
Maximum forward reach3600mm
Weight unload7250kg
Tyre16/70-20
Outside turn radius (over tyre)4250mm
Carriage roll back angle (degrees)42.6
Carriage dump angle (degrees)37.5
Overall height2300mm
Overall width (over tyres)2150mm
Inside width of cab800mm
Front track1750mm
Wheelbase2850mm
Overall length to front tyres4200mm
Overall length to front carriage4650mm
Ground clearance350mm
Engine brandYUNNEI
Engine rate power76KW
Pallet fork length1220mm
Optional engineChina II standard: Cummins 4BT3.9-C100 (74KW) EPA3, EURO3 standard: Yanmar 4TNV98T (61.3KW), EURO5 standard: Xinchai 4E30YG52 (55.8KW), EPA4 standard: QSB2.8t4TC74 (55KW)
Warranty time1 year or 1200 working hours
Delivery timeWithin 30 working days after receipt of deposit
BrandELITE
Package (1*20GP)1 unit
