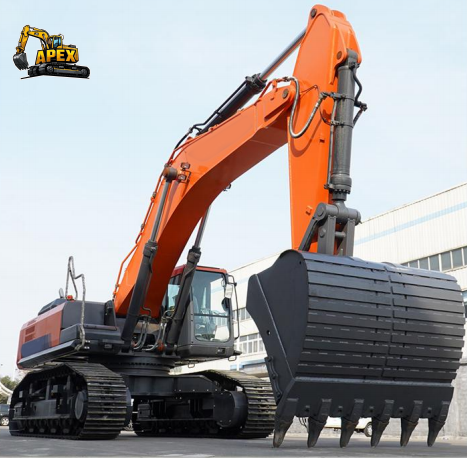

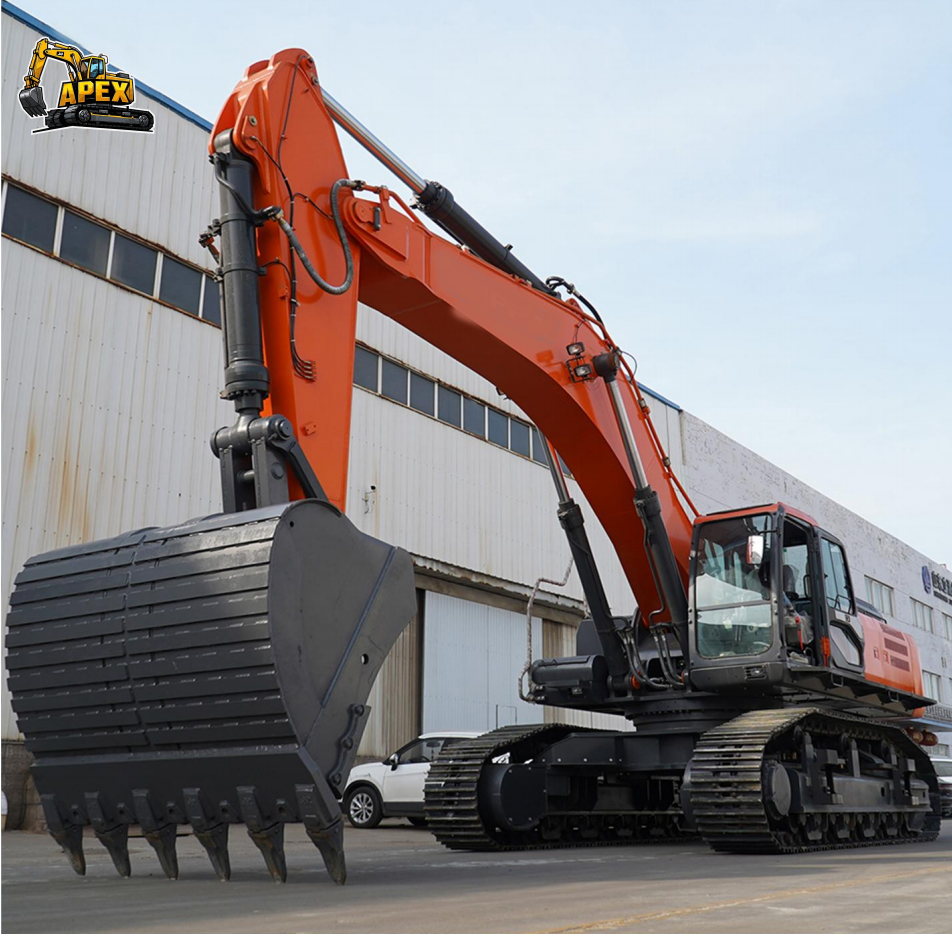

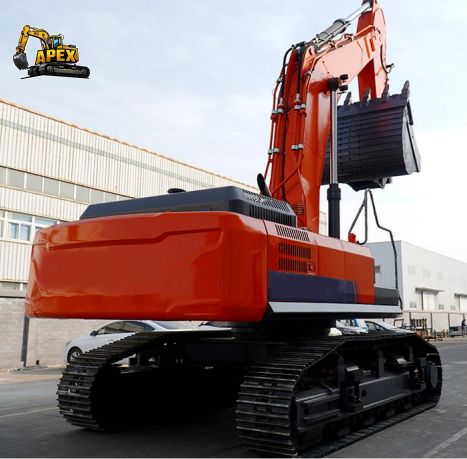

APEX 4500E
The APEX 4500E excavator features an operating weight of 48000kg, a bucket capacity of 2.17m³, and is powered by a CUMMINS engine delivering 238KW at 1800 rmp. It offers a digging depth of 7800mm and a digging height of 11050mm.
+86 537 2288218
+86 15562359517
Dmachinerygroup@gmail.com

→ Product Description

Large excavator APEX 4500E
SpecificationOverall height of cab (mm)3350
Machine working weight (kg)48000Total length for transport (mm)12132
Bucket capacity (m3)2.17Total transport height (mm)3700
Boom length (mm)7100Track length (mm)5460
Dipper length (mm)3350Full width of crawler track (mm)3350
PerformanceTrack shoe width (mm)600
Rotation speed (rpm)8.9Tail turning radius (mm)3750
Walking speed (km/h)3.0-5.6Minimum ground clearance (mm)772
Bucket digging force (KN)286.2/303.8Scope of work
Digging force of stick (KN)212.7/225.4Maximum digging range (mm)12110
EngineMaximum digging range on the ground (mm)11865
Engine modelCumminsMaximum digging depth (mm)7800
Rated power(kw/rpm)238/1800Maximum excavator height (mm)11050
Cooling methodWater coolingMaximum discharge height (mm)7900
Body sizeMaximum vertical depth that can be excavated (mm)4400
Total transport width (mm)3342
