    Where Precision Meets Purpose: EVERMORE Skid Steer Loaders Deliver Innovation and Strength to Every Job.

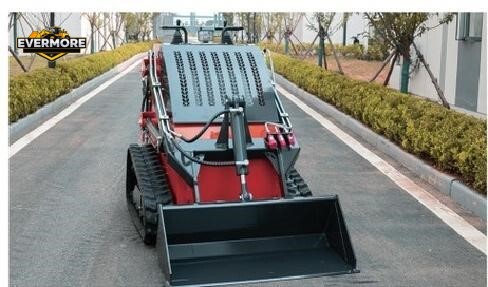

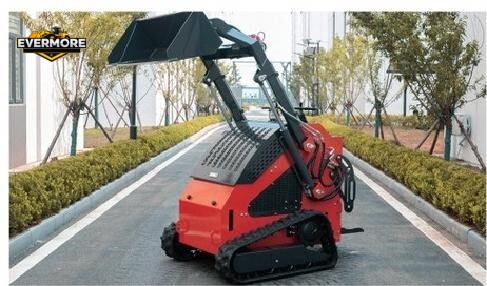

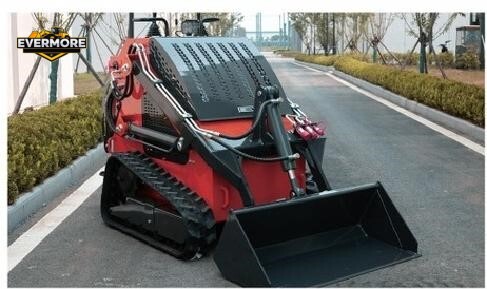

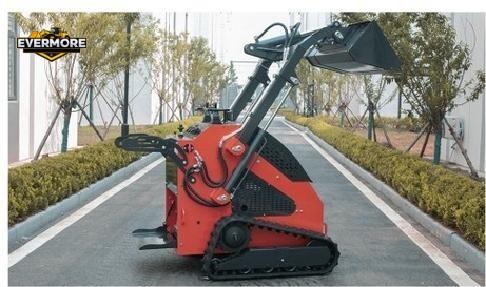

EVERMORE 510ZT
The compact EVERMORE 510Z skid steer loader is powered by (Electric/Koop/Runtong/B&S) engine with (72V, 200Ah battery/15KW/19.2KW/17KW) power. It has a rated operating capacity of 300kg, a maximum capacity of 400kg, and a breakout force of 4.5kN. The loader features a 0.12m³ bucket, a maximum speed of 6km/h, With a 10L fuel tank and an operating weight of 1200kg, it complies with Euro 5/EPA emissions standards.

→ Product Description

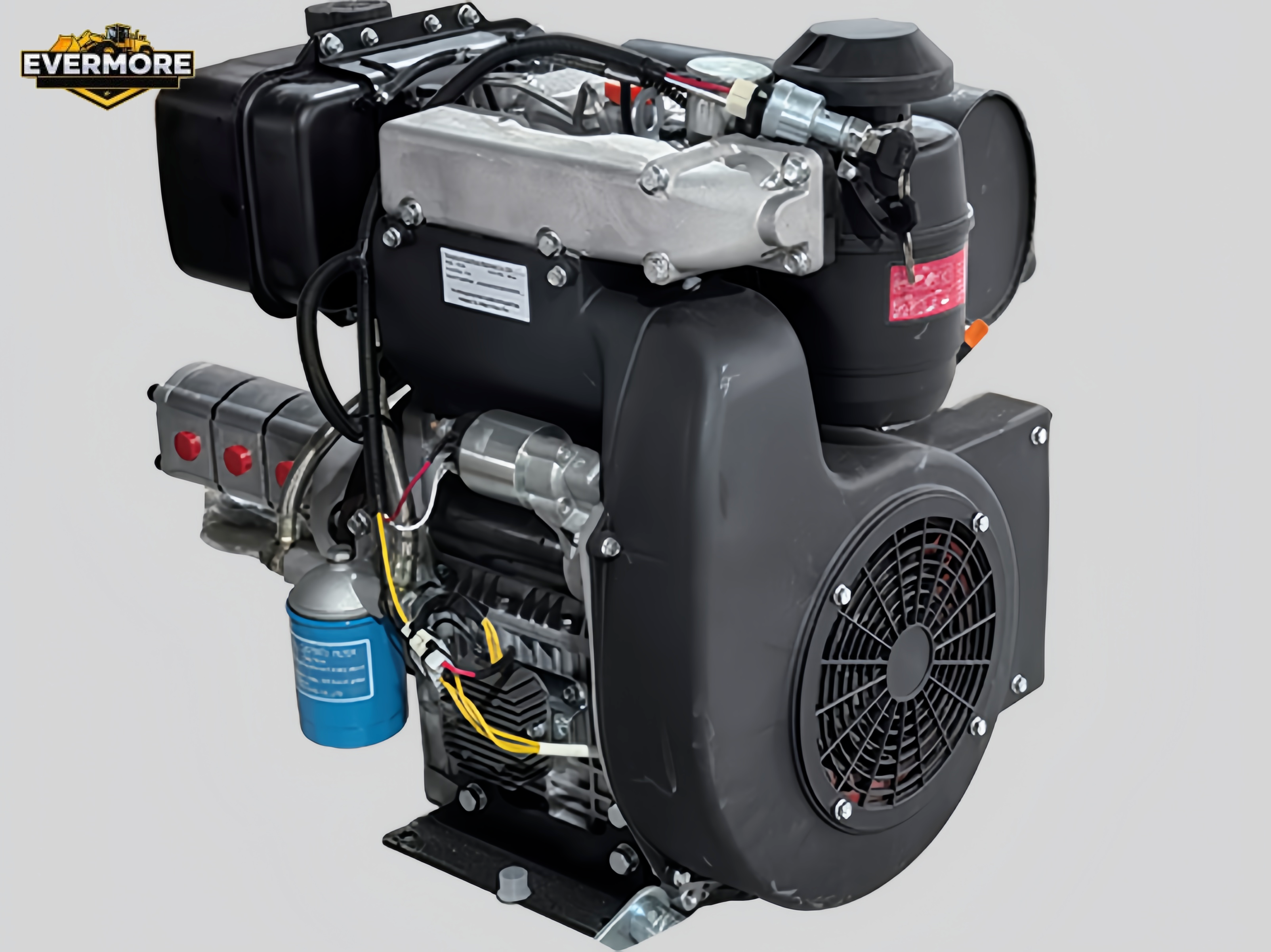

Engine brandElectric/koop/Runtong/B&S
Rated power  8kw、72v、200ah/15/19.2/17kw
Number of cylinders2
Air intake wayNaturally Aspirated
Emissions standardsEURO5/EPA
Rated operating capacity300Kg
Maximum operating capacity400Kg
Maximum breakout force4.5KN

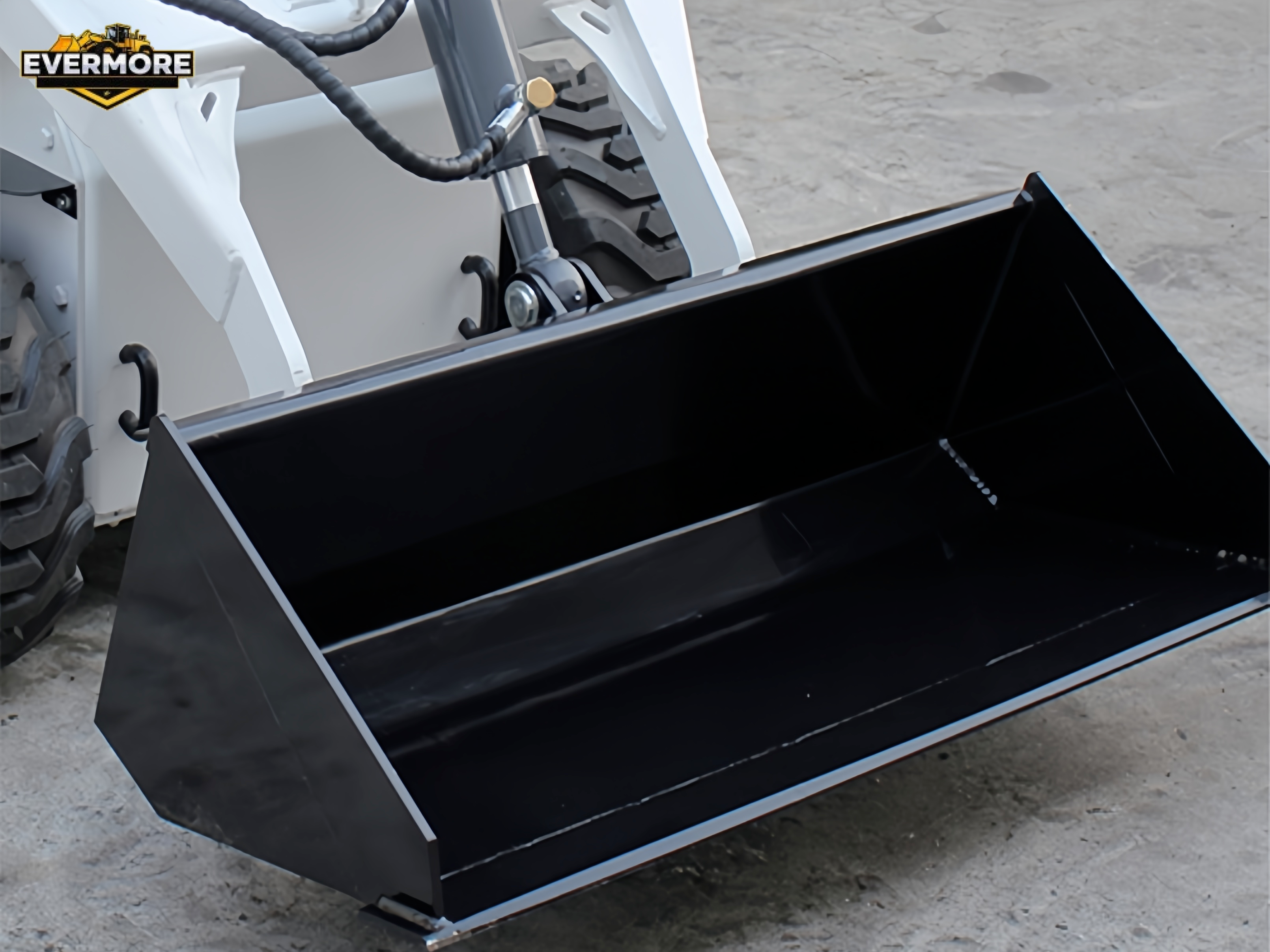

Bucket capacity0.12m³
Driving speed0-6km/h
Total cycling time9s
System operating pressure17-21bar
Fuel tank capcity10L
Operating weight1200KG
Track model180*72*35
Vehicle height 1300mm
Length with standard bucket 2140mm
Vehicle width (standard tire) 1050mm
Length without standard bucket 1850mm
Bucket width1050mm
Tail length500mm
Height at maximum extension2400mm
Height to the the bucket pin1870mm
 Maximum height as lay the bucket flat1720mm
Dumping height1510mm
Discharge distance250mm
Track contact with ground length800mm
Ground clearance110mm
The flip angle of the bucket on the ground    27°
 Bucket flip angle at highest position114°
