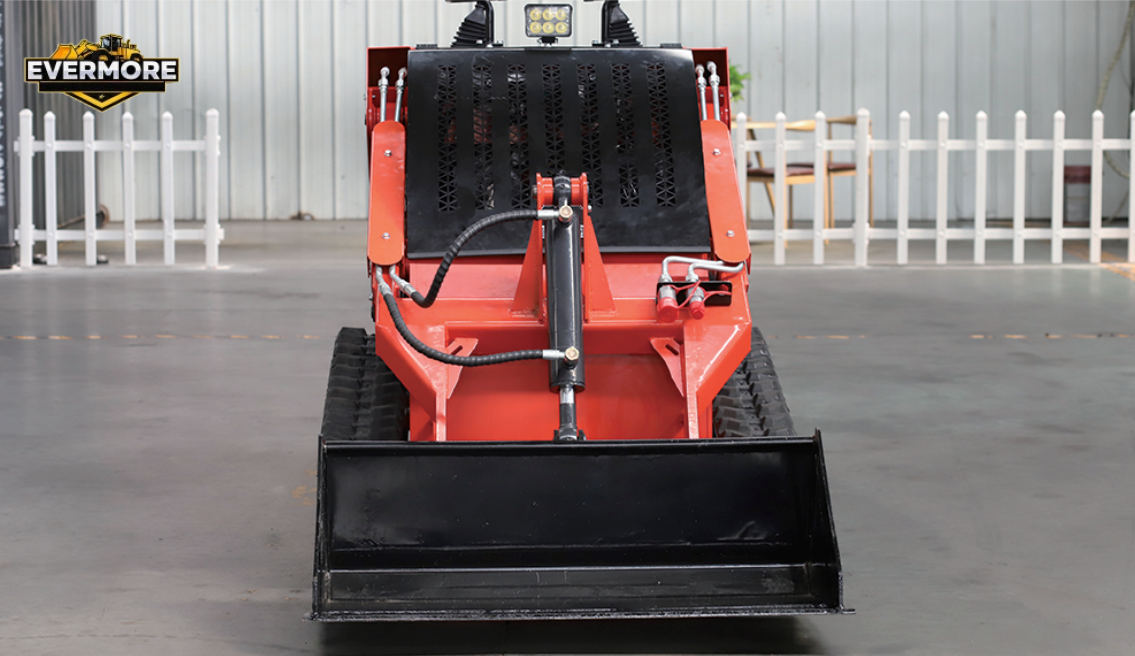

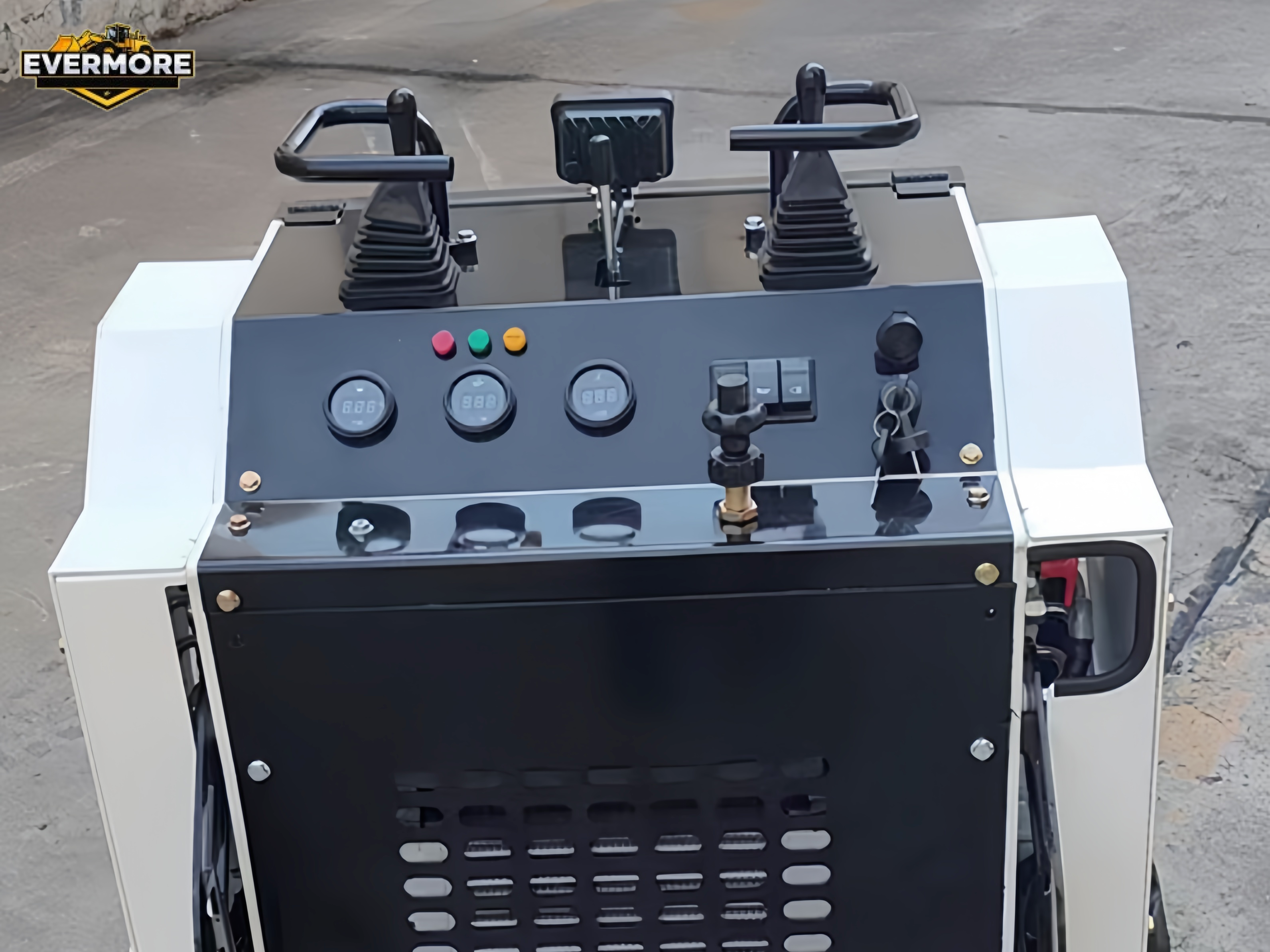

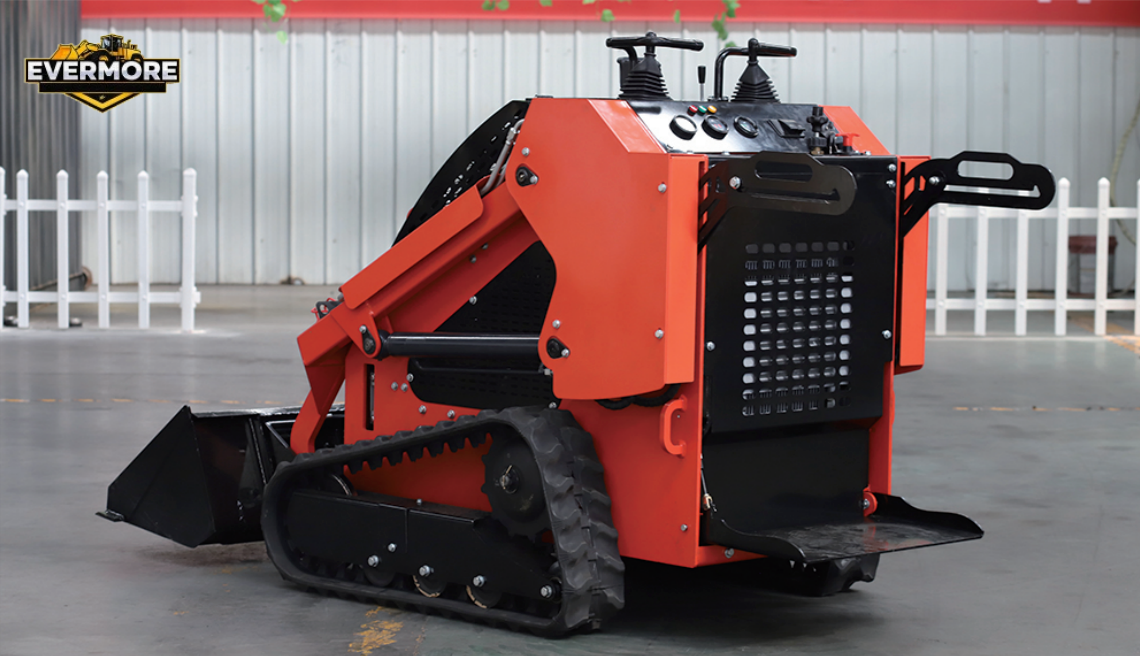

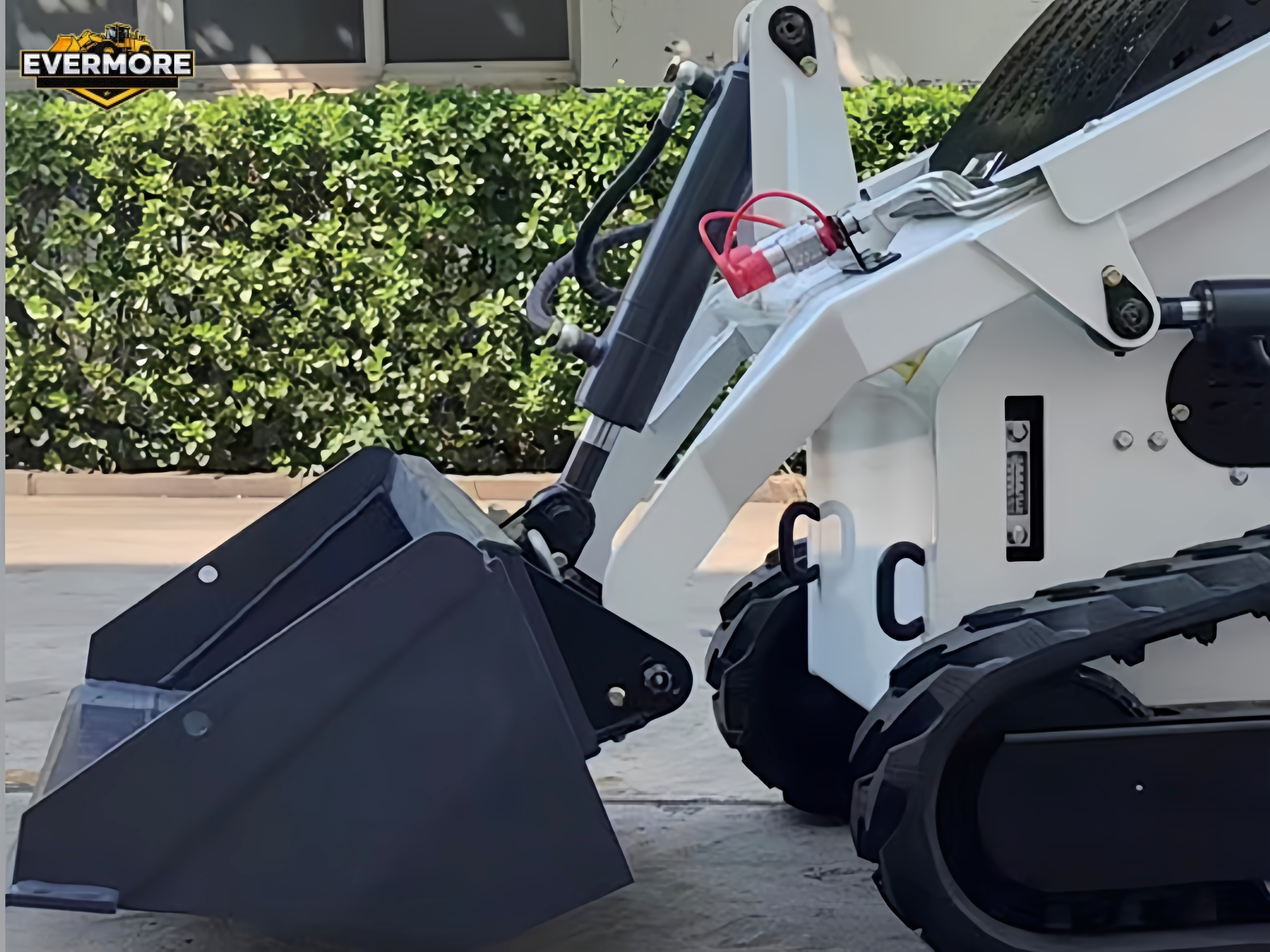

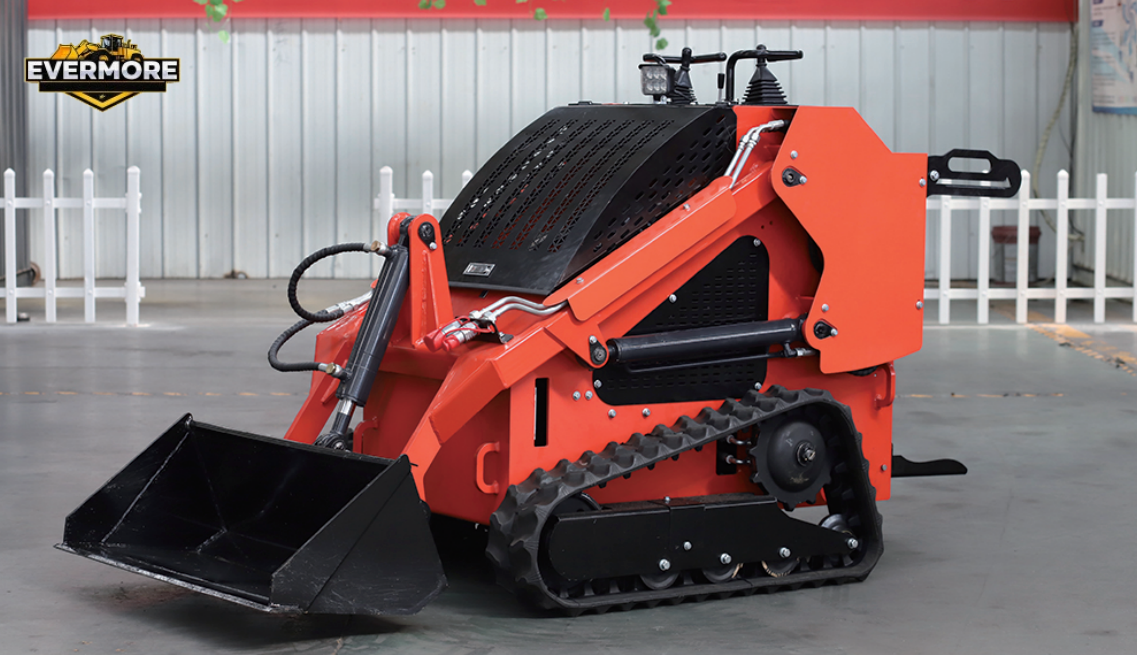

EVERMORE 515ZT

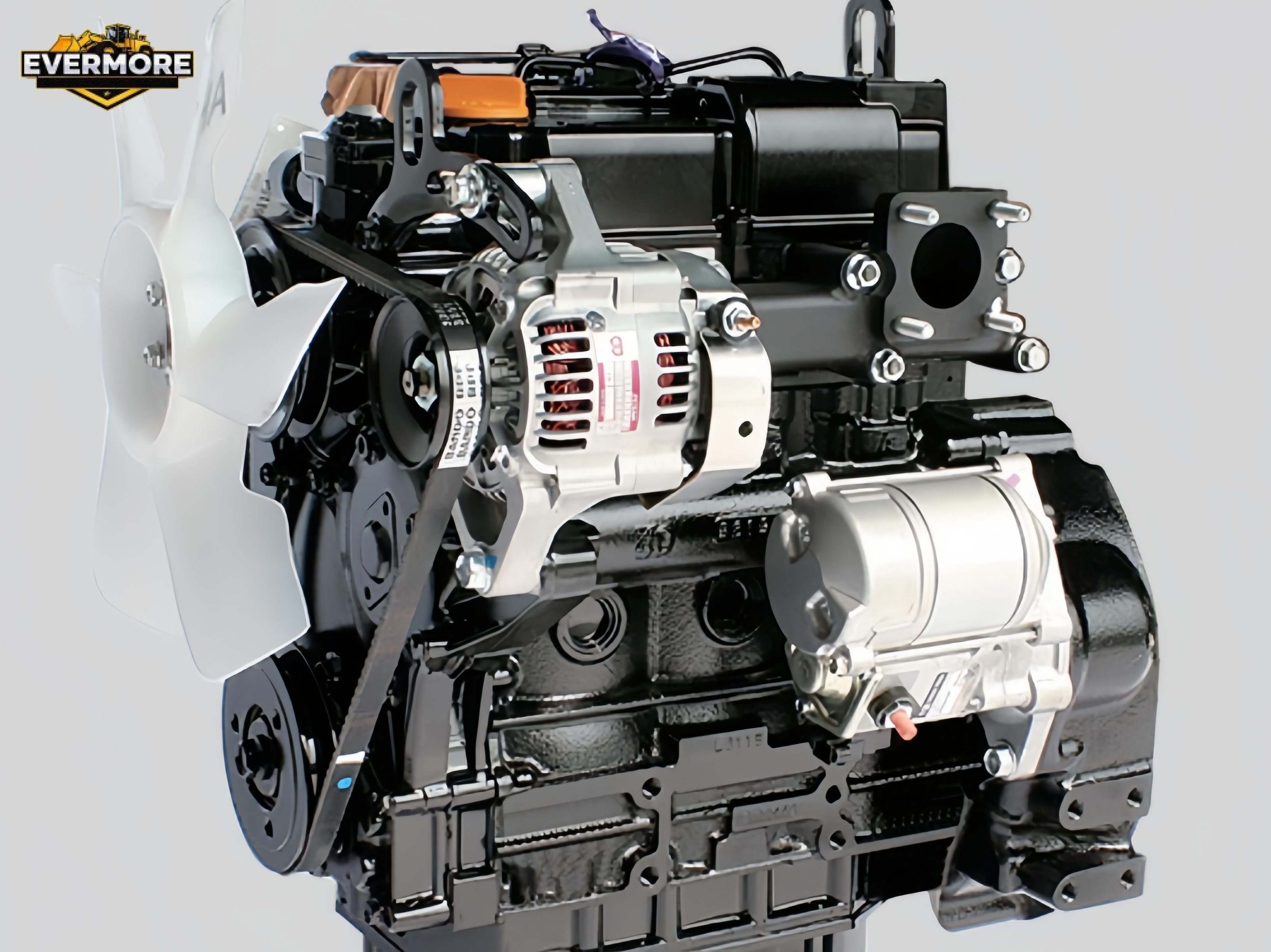

The compact EVERMORE 515ZT skid steer loader is powered by Yanmar 3TNV80 engine with 18.64KW power. It has a rated operating capacity of 350kg, a maximum capacity of 480kg, and a breakout force of 5.5kN. The loader features a 0.12m³ bucket, a maximum speed of 6km/h, With a 13L fuel tank and an operating weight of 1200kg, it complies with Euro 5/EPA emissions standards.
+86 537 2288218
+86 15562359517
Dmachinerygroup@gmail.com

→ Product Description

Engine brand

Yanmar 3TNV80

Rated power

20-25HP

Number of cylinders

3

Air intake way

Naturally Aspirated

Emissions standards

EURO5/EPA

Rated operating capacity

350Kg

Maximum operating capacity

480Kg

Maximum breakout force

5.5KN

Bucket capacity

0.12m³

Driving speed

0-6km/h

Total cycling time

9s

System operating pressure

17-21bar

Fuel tank capcity

13L

Operating weight

1200KG

Track model

180*72*35

Vehicle height

1300mm

Length with standard bucket

2140mm

Vehicle width(standard tire)

1050mm

Length without standard bucket

1850mm

Bucket width

1050mm

Tail length

500mm

Height at maximum extension

2400mm

Height to the the bucket pin

1870mm

Maximum height as lay the bucket flat

1720mm

Dumping height

1510mm

Discharge distance

250mm

Track contact with ground length

900mm

Ground clearance

160mm

The flip angle of the bucket on the ground

27°

Bucket flip angle at highest position

114°
